The DB-RLC10K is the ideal companion to the RDL VCA modules where levels are to be controlled from a single remote location. It is designed to directly interface with the 3-wire control input of the VCA module. The DB-RLC10K contains a high-quality 10 k? potentiometer for setting the control voltage.

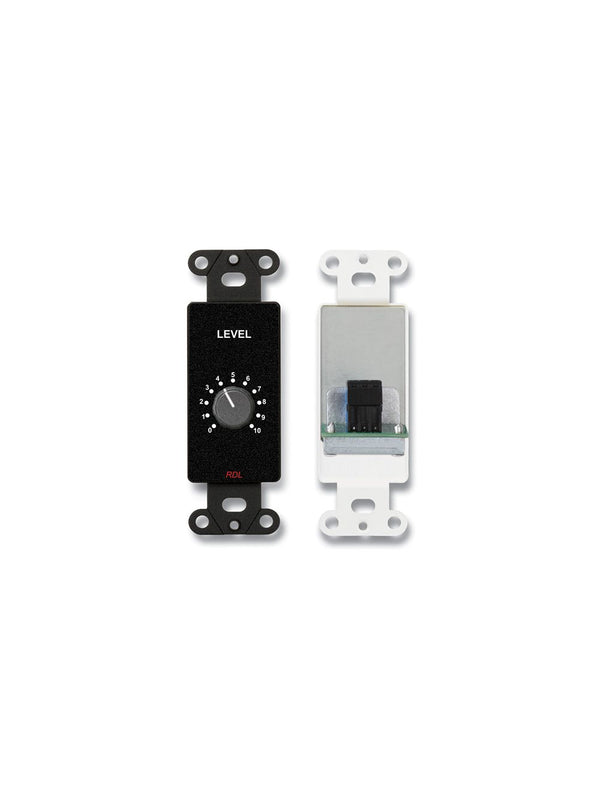

The DB-RLC10K panel has 10 graphic increments which provide a visual indication of the level setting. The DB-RLC10K and RDL remote source selector may be mounted together in a double box/plate to form a visually appealing control of both audio source and audio level.
Three conductors are required for connection between the DB-RLC10K and an RDL VCA. A single shielded pair is normally used.
All the DB-RLC10K features combine to make it the optimum economical choice for single-point remote level control in high-quality systems. Use the DB-RLC10K individually with an RDL control module, or combine it side-by-side with other RDL remote accessories as part of a complete audio/video system.
- Remote Level Control Panel
- Single-Turn Rotary Control
- Single Control Location
- Direct Connection to RDL VCA Modules
- Discrete Wiring Connections on Detachable Terminal Block
- Available in Standard RDL White, Stainless or Black
|Resistance||0 to 10 k?, linear|
|Connections||Detachable terminal block|
|Ambient Operating Environment||-10° C to 55° C|
|Mounting||Mounts in US electrical box or RDL international wall boxes WB-1U, WB-2U; decorative plate available separately|
|Package Type||Cardboard Box|
|Package Dimensions||3.625 x 4.625 x 2.125 in.|
|Shipping Weight||0.44 lbs.|
|WEEE weight||0.295 lbs.|
