QSC AD-S8T-WH

Availability: Available Unavailable

Product Type: Pro Audio

Product Vendor: QSC

Product SKU: QSC-AD-S8T-WH

Overview The white AD-S8T 8" 2-Way AcousticDesign Surface Mount and Loudspeaker from QSC is designed to serve as a versatile, all-weather device. The speaker uses DMT (Directivity Matched Transition) technology to provide a uniform frequency response over the axisymmetric coverage area. The ABS polymer...


Login for Price

DISCLAIMER

ATTENTION! TARIFFS AND INDUSTRY IMPACT: All Pricing is subject to change without notice due to industry wide Tariff increases with several major manufacturers. Please check with your sales rep for current and updated pricing information prior to ordering. Quotes are only valid for the day they are provided. Returns for credit - New product may be approved to be returned for credit within 30 days of original packaging. Product must be new, unopened and in original packaging Returns and canceled orders are subject to a 25% restocking fee. -MANY ITEMS ARE CURRENTLY ON BACKORDER. PLEASE VERIFY PRICING AND AVAILABILITY ON ALL PRODUCTS WITH YOUR SALES REP VIA CHAT, EMAIL, OR PHONE BEFORE PLACING AN ORDER

Product Details

Overview

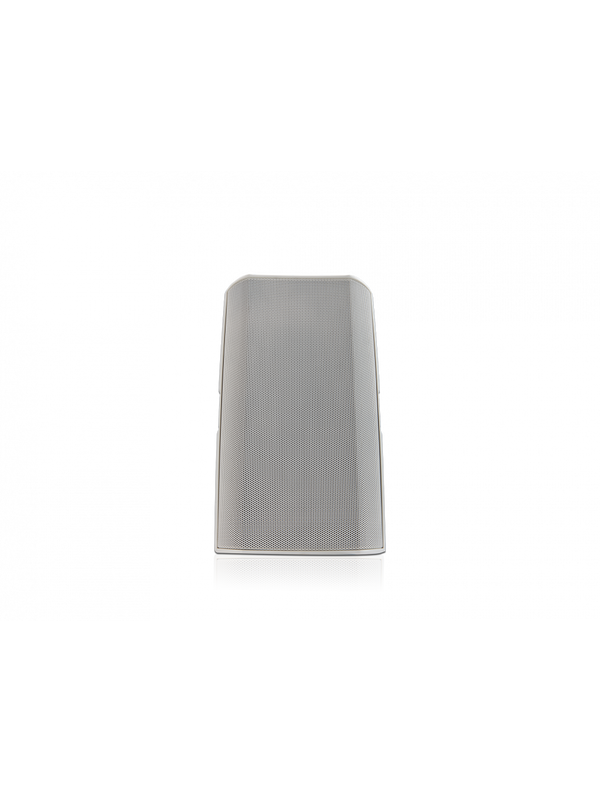

The white AD-S8T 8" 2-Way AcousticDesign Surface Mount and Loudspeaker from QSC is designed to serve as a versatile, all-weather device. The speaker uses DMT (Directivity Matched Transition) technology to provide a uniform frequency response over the axisymmetric coverage area. The ABS polymer enclosures, sealed input panel covers, and powder coated aluminum grille allow for indoor and outdoor use.

The included X-Mount System is designed to offer simple installation. Articulation marks allow the loudspeaker to be pre-installed on the ground and knurled surfaces at the pivot planes work to prevent the speaker from drifting or sagging over time.

Features

  • DMT™ (Directivity Matched Transition) ensures smooth, uniform frequency response over the coverage area
  • Patent pending X-Mount™ enables the loudspeaker to be easily installed and deployed at a variety of angles without slipping over time
  • Optional yoke mount and M10 Kit-C eyebolt kit offers additional loudspeaker deployment options
  • Euroblock connectors allows pre-wiring of the system
  • Low saturation 70/100V transformers with 8 ohm bypass (S8T and S10T only)
  • Lightweight ABS enclosures offer long-term durability and lasting good looks
  • Available in black (RAL 9011) or white (RAL 9010)

Specs

Frequency Range 55 Hz to 20 kHz
Noise Power 200 W / 40 V (rms)
Sensitivity 90 dB SPL
Coverage Angle (-6 db): 105°
Directivity Factor 7
Directivity Index 9 dB
Maximum Sound Pressure Level (SPL) Continuous: 113 dB
Peak: 119 dB
Impedance 8 ?
Recommended Amp Power 400 W
Transformer Taps 70 V: 60, 30, 15, 7.5 W and 8 ? bypass
100 V: 60, 30, 15 W and 8 ?
High Frequency Transducer 1" exit / 1.4" voice coil compression driver
Low Frequency Transducer 8" weather resistant paper cone woofer
Input Connector Euroblock connector with parallel output terminals
Weight 24.1 lb (10.9 kg)
Dimensions 17.3 x 10.0 x 9.9" (43.9 x 25.4 x 25.1 cm)
